Место происхождения:
Чжучжоу, Китай
Фирменное наименование:
KIMHOO
Сертификация:
ISO9001
Номер модели:
TCT 2-х канавная фреза с зубьями
Видео
Видео
Application:
For processing wood,MDF,plwood,multilayer etc.
Features:
1:Structure for long service life;
3:Sharp edge and high wear resistance, professionally
4:designed for wood milling;
1.Mix &Match model no. in one batch is acceptable.
2.For distributor,we can label your brands on cutters and plastic box.
3.Mix &Match coating of tools in one batch is acceptable.
4.AlTiN,TiAlN,TiSiN,TiN,DLC (Diamond like coating),Nano, Diamond for you to choose to win your competitors!
5.HS Code reference for you to control everything:8207709000.
Product Details

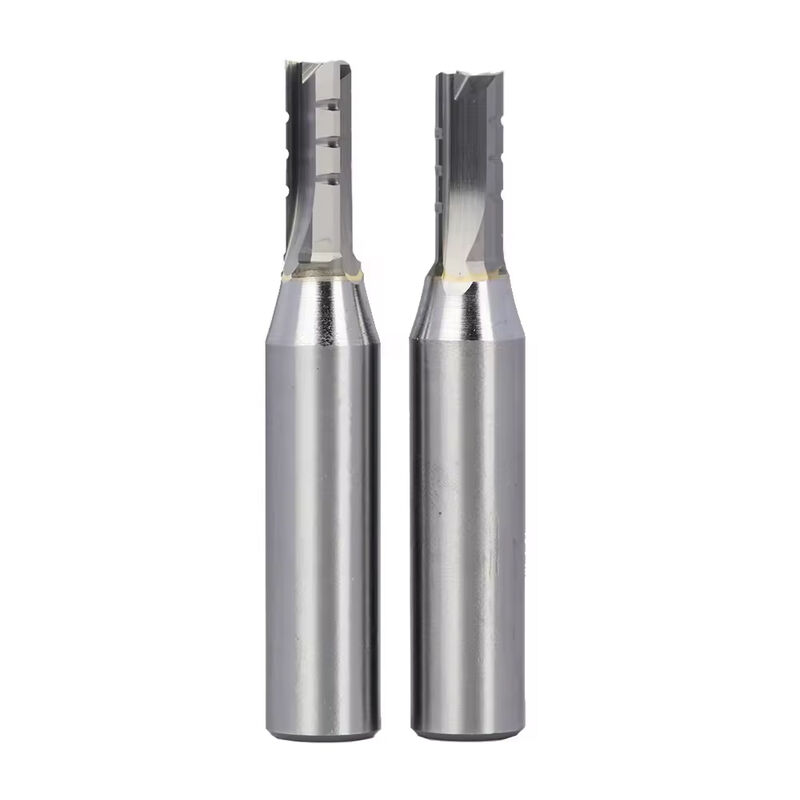

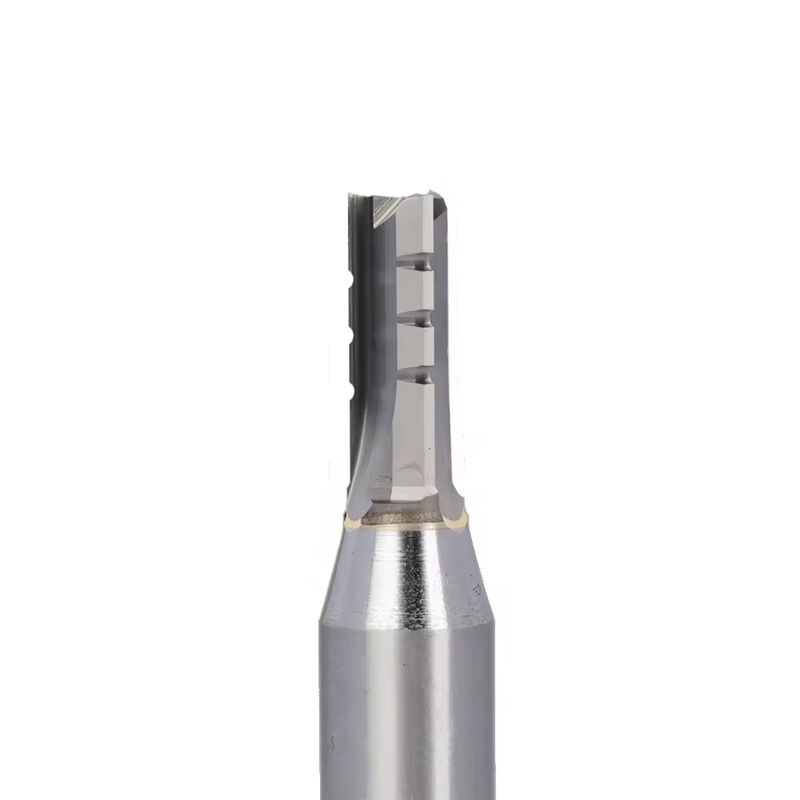

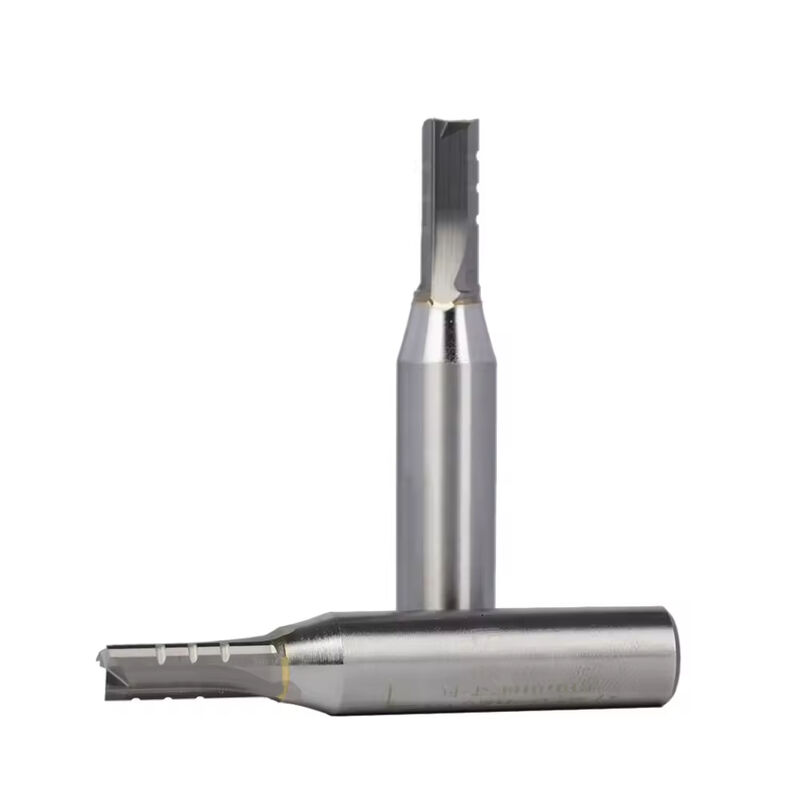

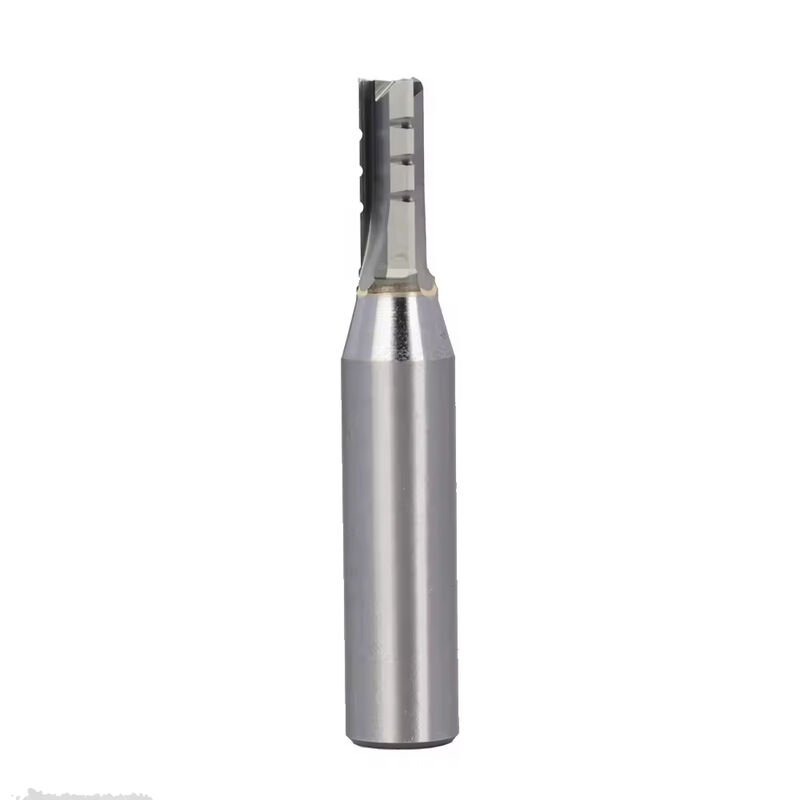

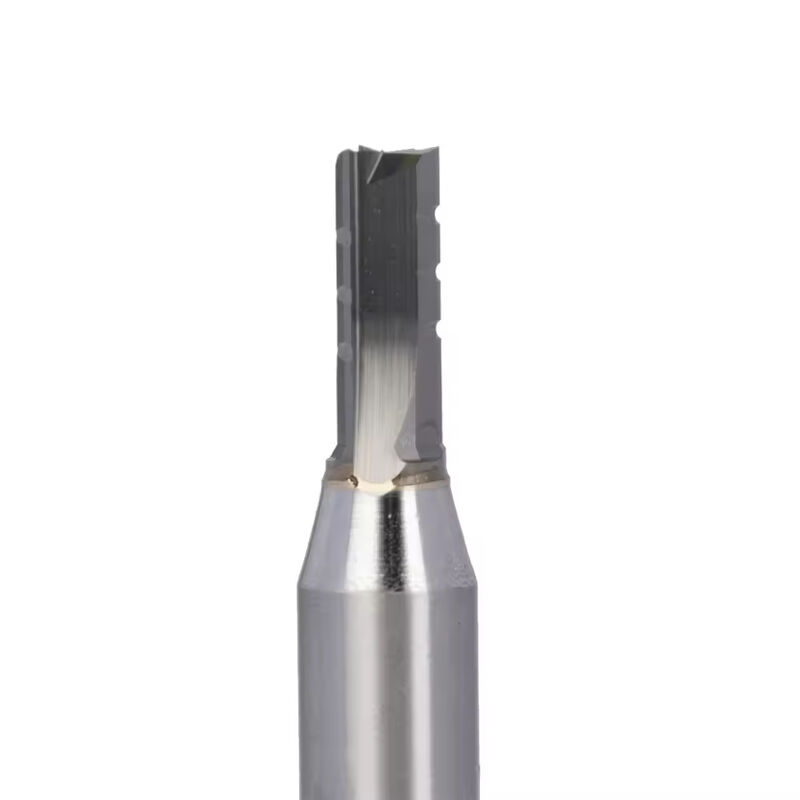

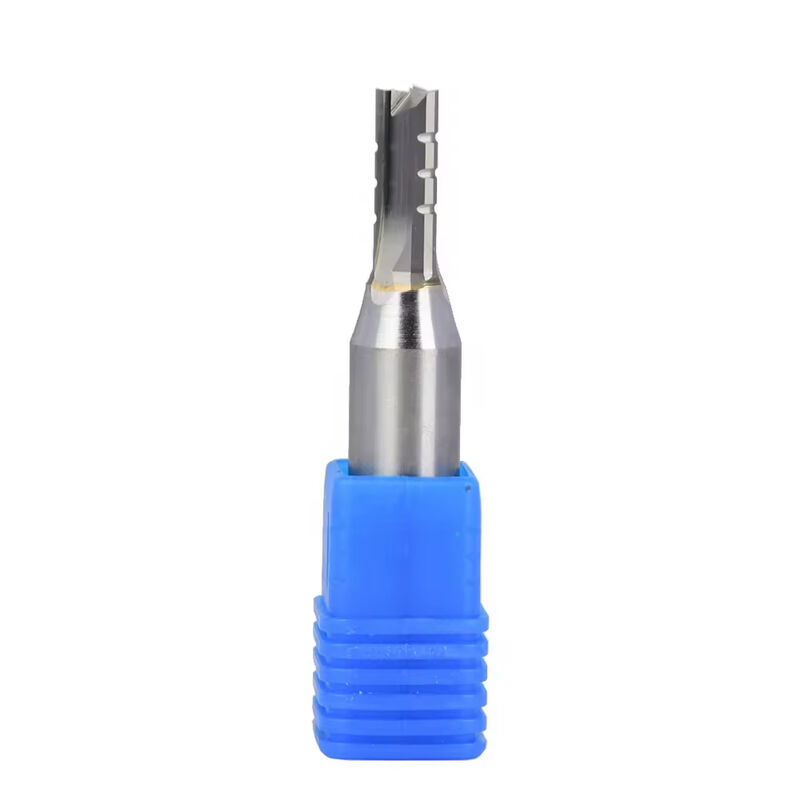

The integral cemented carbide bit is made of fine cemented carbide material, which is coated to delay the service life. The specially designed geometric blade makes the bit self-centering and has accurate chip control and chip removal function during drilling. The self-centering function and strict manufacturing accuracy of the bit ensure the quality of drilling holes, eliminating the need for further finishing after drilling.Epsilon-type blade edge and the negative rear angle design of crossed blade ensure the smooth bottom of the hole.The four axis cnc machining center tool guarantees the accuracy effectively by the one-step molding technology.
| CD | CL | SD | TL | Z |
| 6 | 20 | 1/2.12 | 50 | 3 |
| 6 | 22 | 1/2.12 | 50 |
3
|
| 6 | 28 | 1/2.12 | 50 | 3 |
| 6 | 30 | 1/2.12 | 50 | 3 |
| 8 | 20 | 1/2.12 | 50 | 3 |
| 8 | 22 | 1/2.12 | 50 | 3 |
| 8 | 25 | 1/2.12 | 50 | 3 |
| 8 | 30 | 1/2.12 | 50 | 3 |
| 8 | 35 | 1/2.12 | 50 | 3 |
| 8 | 40 | 1/2.12 | 50 | 3 |
| 10 | 25 | 1/2.12 | 50 | 3 |
| 10 | 30 | 1/2.12 | 50 | 3 |
| 10 | 35 | 1/2.12 | 50 | 3 |
| 10 | 40 | 1/2.12 | 50 | 3 |
| 12 | 25 | 1/2.12 | 50 | 3 |
| 12 | 30 | 1/2.12 | 50 | 3 |
| 12 | 35 | 1/2.12 | 50 | 3 |
| 12 | 40 | 1/2.12 | 50 |
